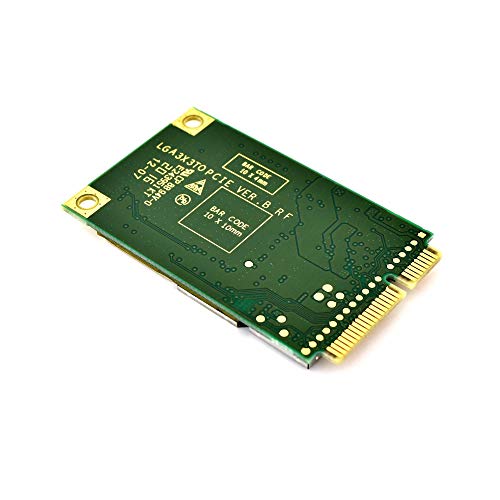

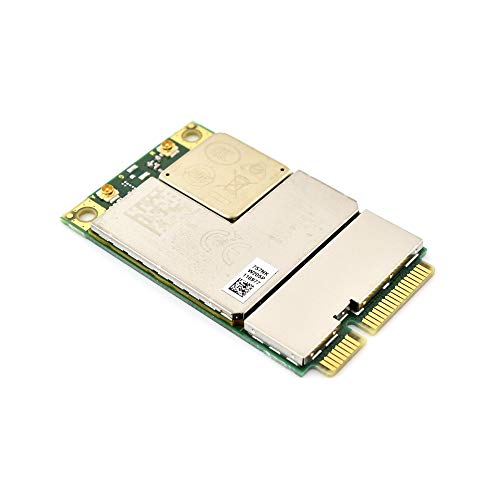

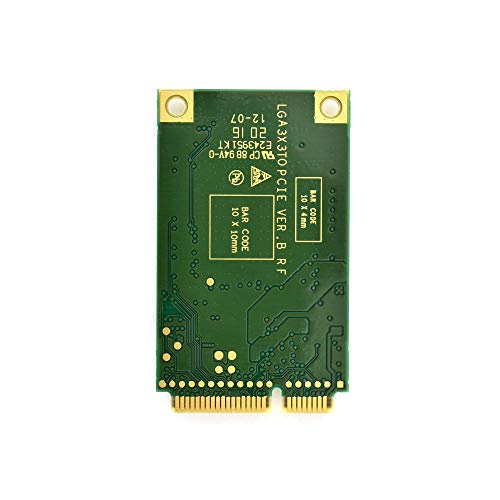

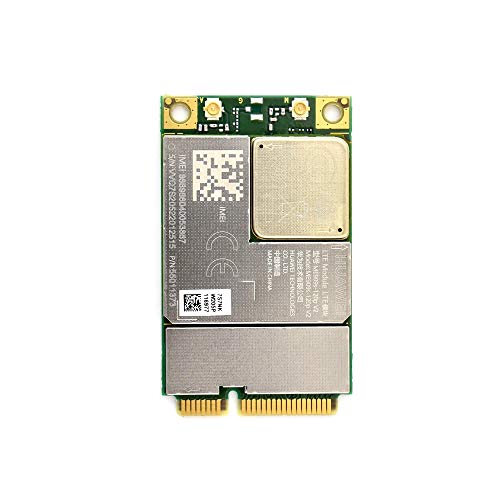

Huawei ME909s-120p v2

ME909s-120p Mini PCI express is the first LTE cat4 module based on Hi-Silicon chipset. Which is high-quality designed LTE module in small size and standard mPCIe form factor, especially for industrial-grade M2M applications such as vehicle telematics, tracking, mobile payment, industrial router, safety monitor and industrial PDAs. ME909s-120p Mini PCI express supports eight (!) bands (B1/B2/B3/B4/B5/B7/B8/B20) in the EMEA region. ME909s-120p Mini PCI express supports 150Mbps downlink data rate, including enhanced features like FOTA, USSD and Huawei enhanced AT commands.

Voer het modelnummer hierboven inom zeker te weten dat dit past.
ME909s-120 (B1/B2/B3/B4/B5/B7/B8/B20), voor Europese markt.
De ME909 familie ondersteuning 150Mbps downlink data-rate, inclusief verbeterde functies zoals FOTA, USSD, IPV6/IPV4 en Huawei verbeterde AT-commands.
Vorm factor: miniPCI Express
Gegevensoverdrachtsnelheid: DC-HSPA+: Downlink:42 Mbps, Uplink: 5.76 Mbps LTE FDD: Downlink:100 Mbps, Uplink: 50 Mbps @Bandwidth 20M (CAT3)
Besturingssysteem: Linux, Android, Windows 7
